PROJECT

CB 885

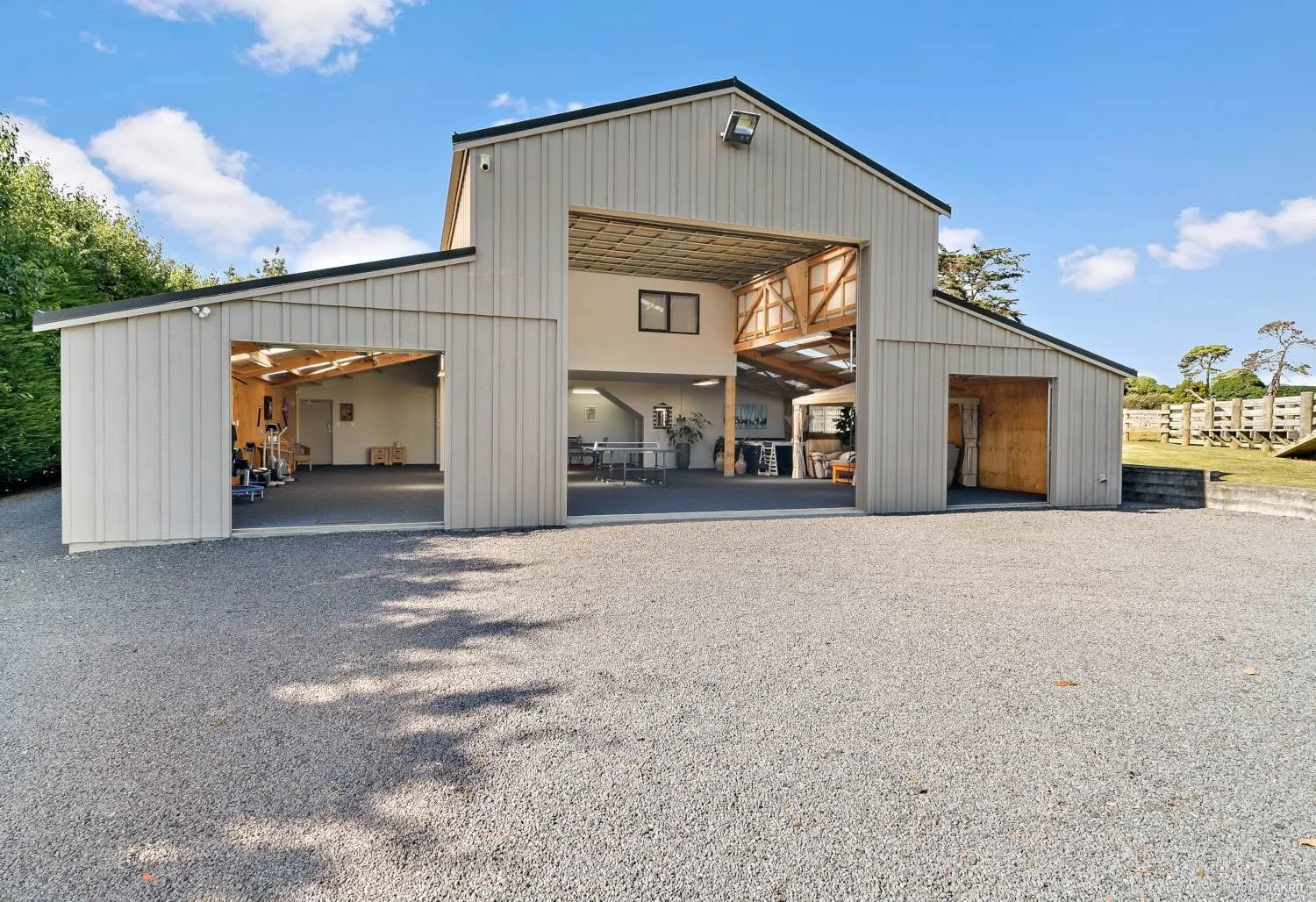

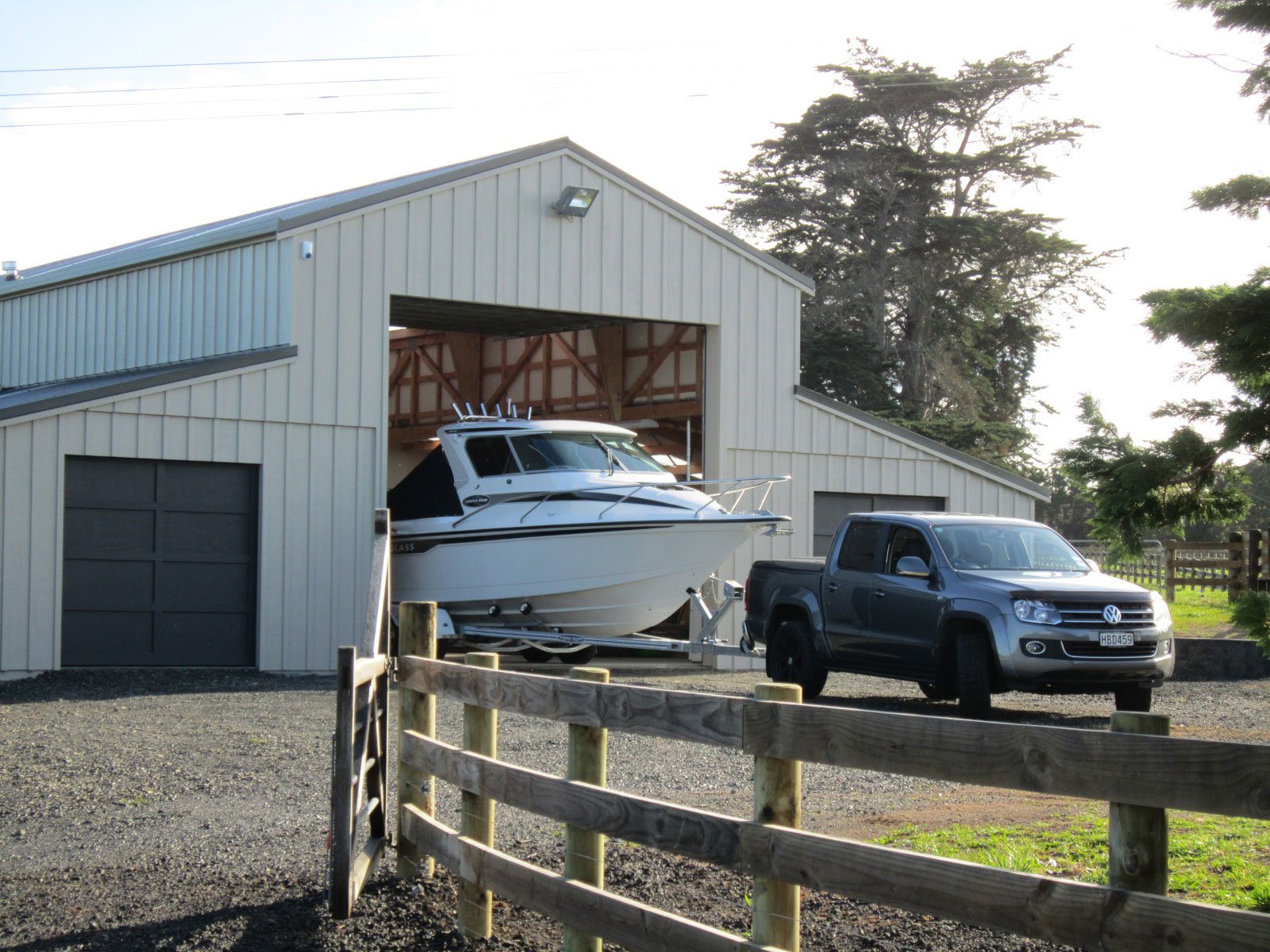

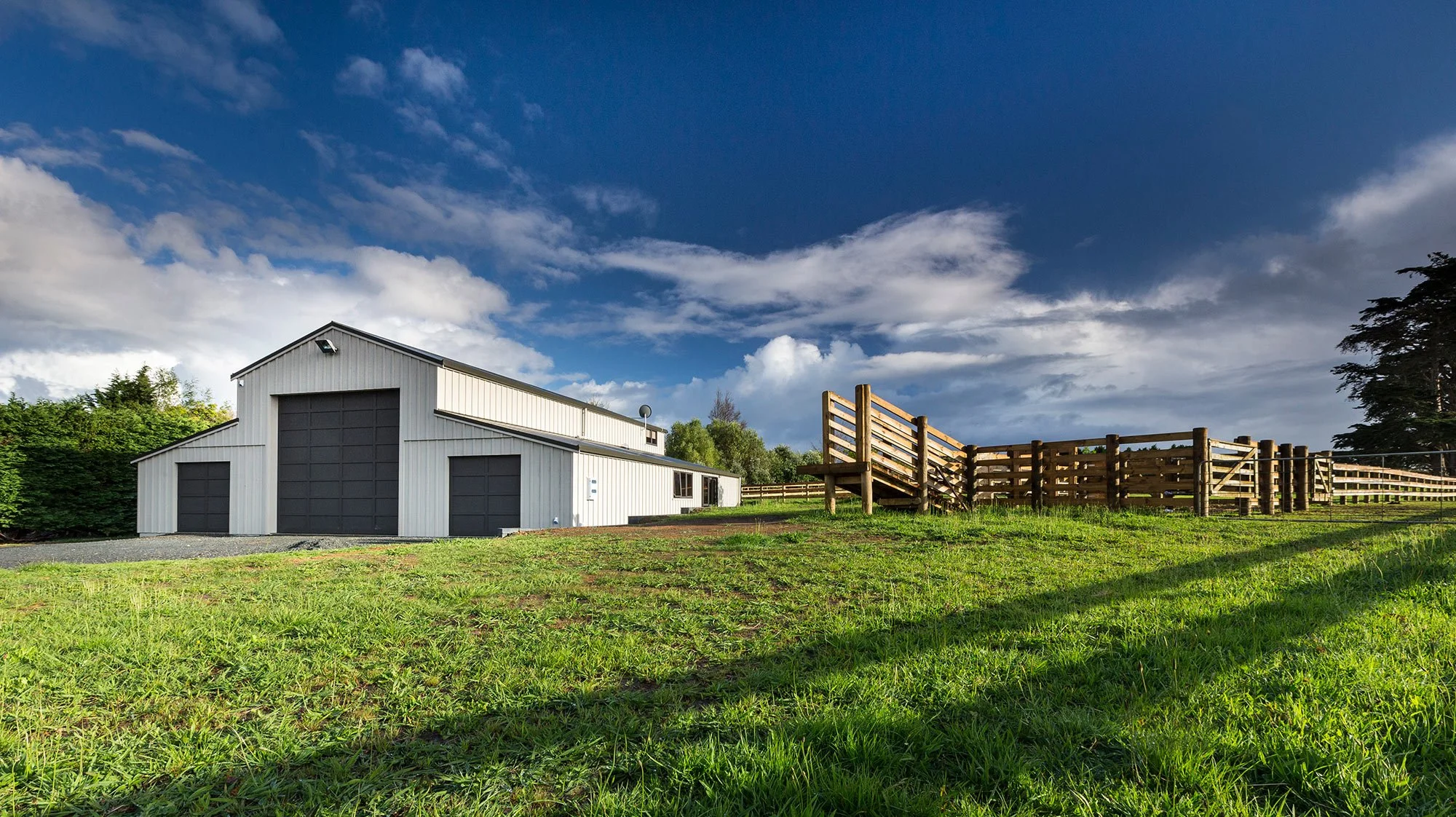

American Barn

TIMBER FRAMED SHED

Icon of a calendar with a page flipped over, showing part of the calendar grid.
Icon with staircase and comb inside a gray circle.

336m²

50m² mezzanine

Simplified icon of an outdoor shower with water droplets falling from the showerhead.
Icon of a bed, indicating a bedroom or sleep area.

1.5

2

Design features

  • Combination barn and living

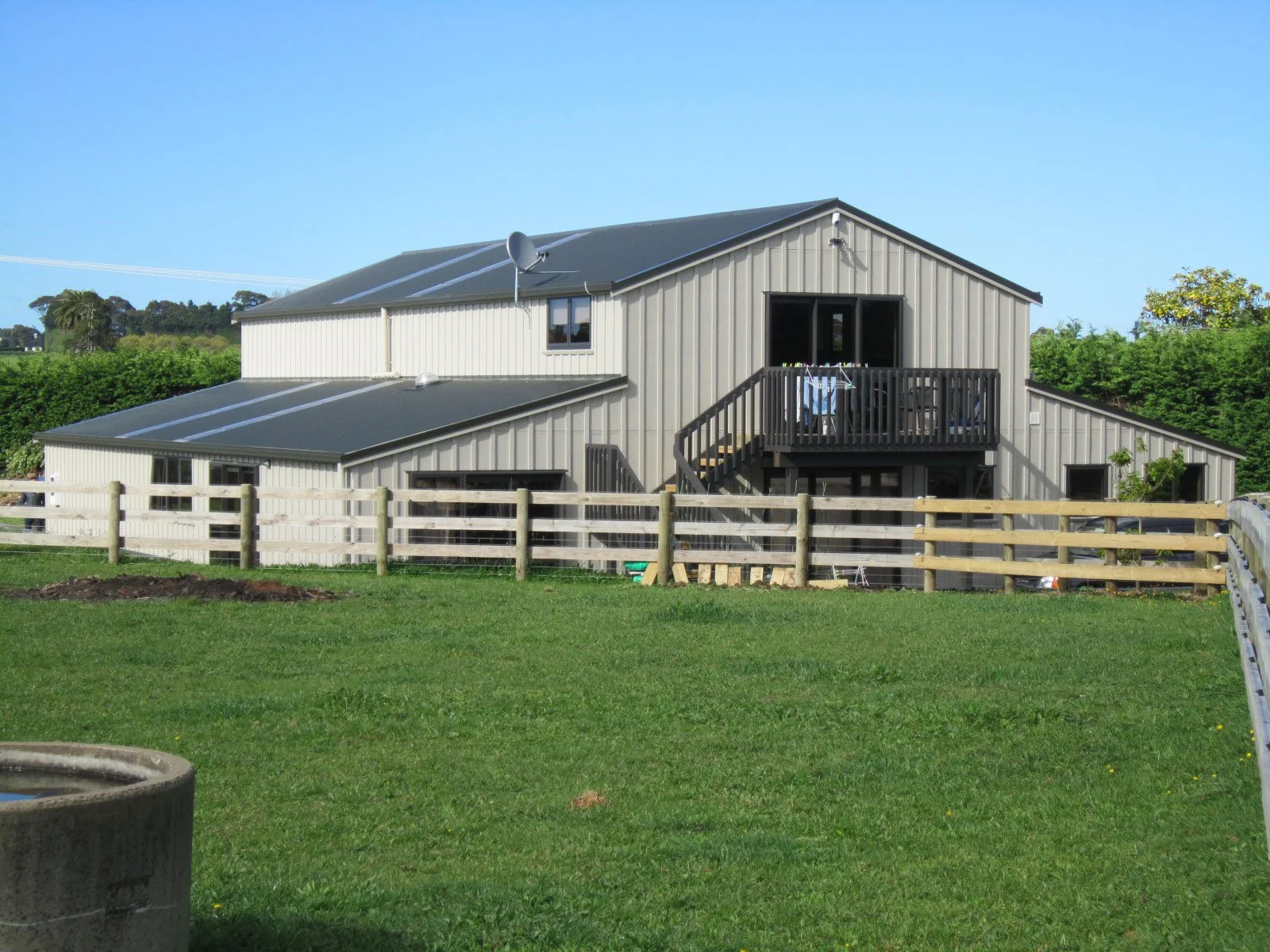

  • Balcony

  • Raking ceilings

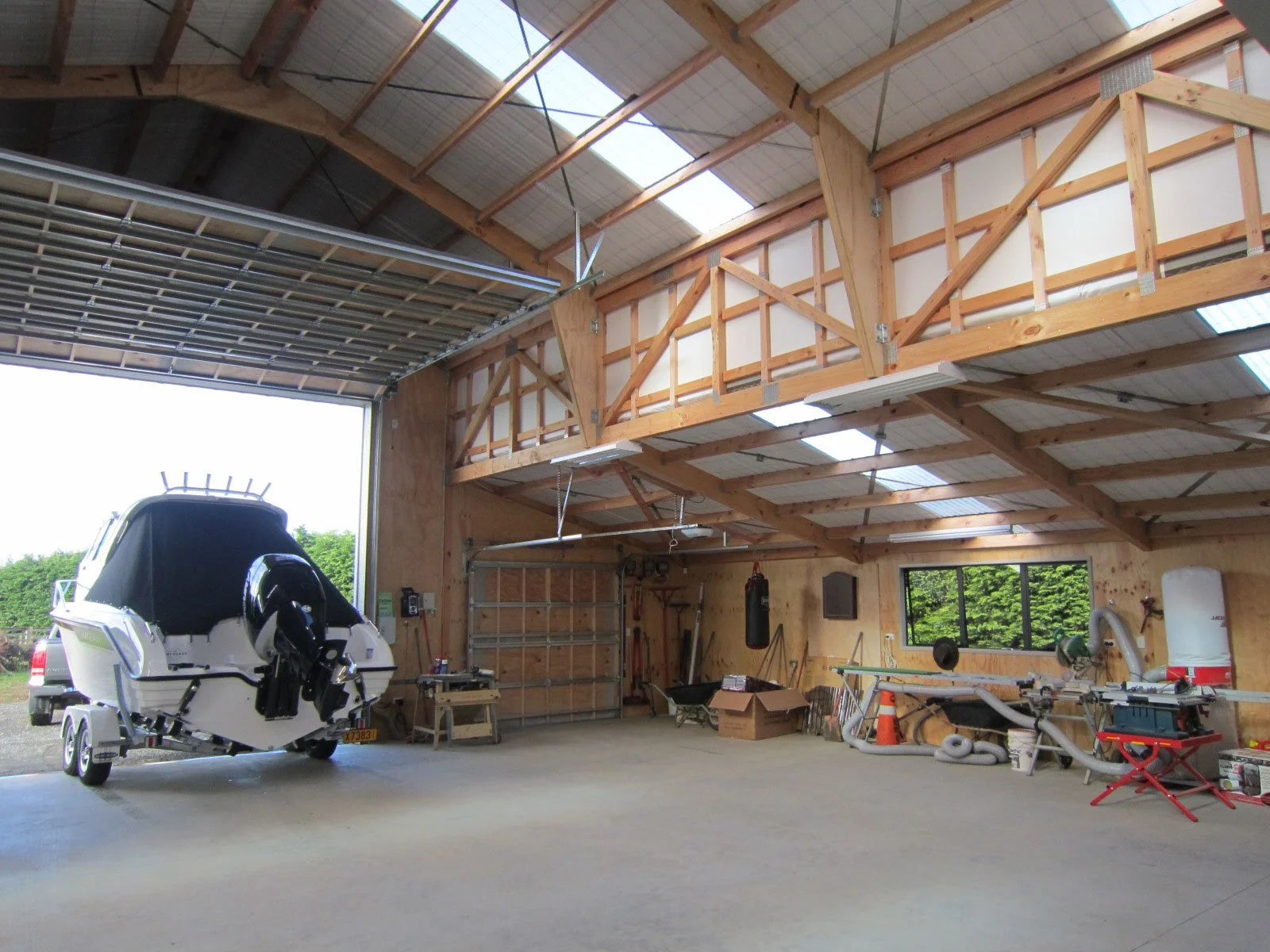

  • Internal LVL portals with ply gussets

Icon of a balcony with a railing and a door with curtains.
A pictogram showing a chicken plus a chair, indicating chicken + chair.
Icon of stacked cash with the label LVL, indicating the currency Latvian lats.
Illustration showing how to fold a paper into a triangular shape, with dashed lines indicating the fold.
A large gray house with a metal roof, a small balcony with laundry hanging, wooden stairs, and a grassy yard with a wooden fence surrounding it.

The floor plan

Floor plan of a house with labeled rooms including laundry, entry, WC, bath, two bedrooms, kitchen, living room, dining area, balcony, void, and barn with lean-to sections.

Features:

  • Mezzanine: 50m²

  • Bedrooms: 2

  • Bathrooms: 1.5

  • Floor area: 336m²

Talk to us about your project

Materials used

  • Joinery: Matt Karaka

  • Cladding: Bandsawn Plywood & Cover Battens

  • Roofing: Colorsteel Endura

Auckland

Green location pin icon with white circle in the center
“Looking at a range of possibilities from the outset Customkit demonstrated their suitability for our project because of their versatility and robust construction techniques.

The Customkit system provided the design flexibility that enabled us to develop the project to meet our needs. Having been a builder for many years I know a good product and design when I see it. I’m very pleased with the outcome, having achieved the barn/workshop of my dreams and a building with will stand the test of time.”
— Robin Verhoef R and S Builders Limited
